Fill in a Valid LADBS NEC Standard Electrical Load Calculation Template

Detailed Instructions for Filling Out LADBS NEC Standard Electrical Load Calculation

Filling out the LADBS NEC Standard Electrical Load Calculation form is a crucial step in ensuring the electrical system of a building is both safe and efficient. This process involves providing detailed information regarding the electrical consumption and the demand factors of the premises, helping to determine the proper size for electrical service requirements. Following these steps carefully will ensure the accuracy and completeness of your submission, facilitating a smoother approval process.

1. Begin by gathering all necessary data about the electrical requirements of the building. This includes the total square footage, the types of appliances and equipment, and any specific electrical demands of the facility.
2. Enter the building owner's name or the name of the business at the top of the form. Ensure the spelling is correct and the information is up-to-date.
3. Provide the address of the property where the electrical work will be performed, including street name, number, city, and zip code.
4. List the total square footage of the living area, excluding garages, unfinished basements, and outdoor spaces, under the designated section.
5. For residential properties, fill out the sections pertaining to general lighting load, small-appliance circuits, and laundry circuit loads. Use the standard values provided in the NEC (National Electrical Code) for these calculations.
6. Determine the specific electrical load for any appliances not covered by the general lighting load calculation. This includes items such as stoves, ovens, heating systems, and air conditioning units. Input these figures in the appropriate sections.
7. If applicable, add the load calculations for any special equipment or features, such as pools, spas, or outdoor lighting. These must be calculated separately and then added to the total load.
8. For commercial buildings, ensure that you account for HVAC (Heating, Ventilation, and Air Conditioning) loads, elevators, and any industrial equipment. These figures should be filled in the corresponding sections provided on the form.
9. After all specific loads have been calculated and entered, sum up the total electrical load. This will be entered in the section labeled "Total Load."
10. Review the form to ensure all sections have been accurately completed. Mistakes or omissions can cause delays in the approval process.
11. Sign and date the bottom of the form, affirming that the information provided is both accurate and complete. If you're working on behalf of a company, include your title next to your name.
12. Submit the completed form to the LADBS for review. Depending on your locality, submission may be done in person, by mail, or through an online portal.

Completing the LADBS NEC Standard Electrical Load Calculation form with thoroughness and precision is the first step toward securing the electrical integrity of any building. By carefully following these instructions, you will help ensure a process that is efficient and free of setbacks, paving the way for the successful implementation of your electrical project.

What is the LADBS NEC Standard Electrical Load Calculation form?

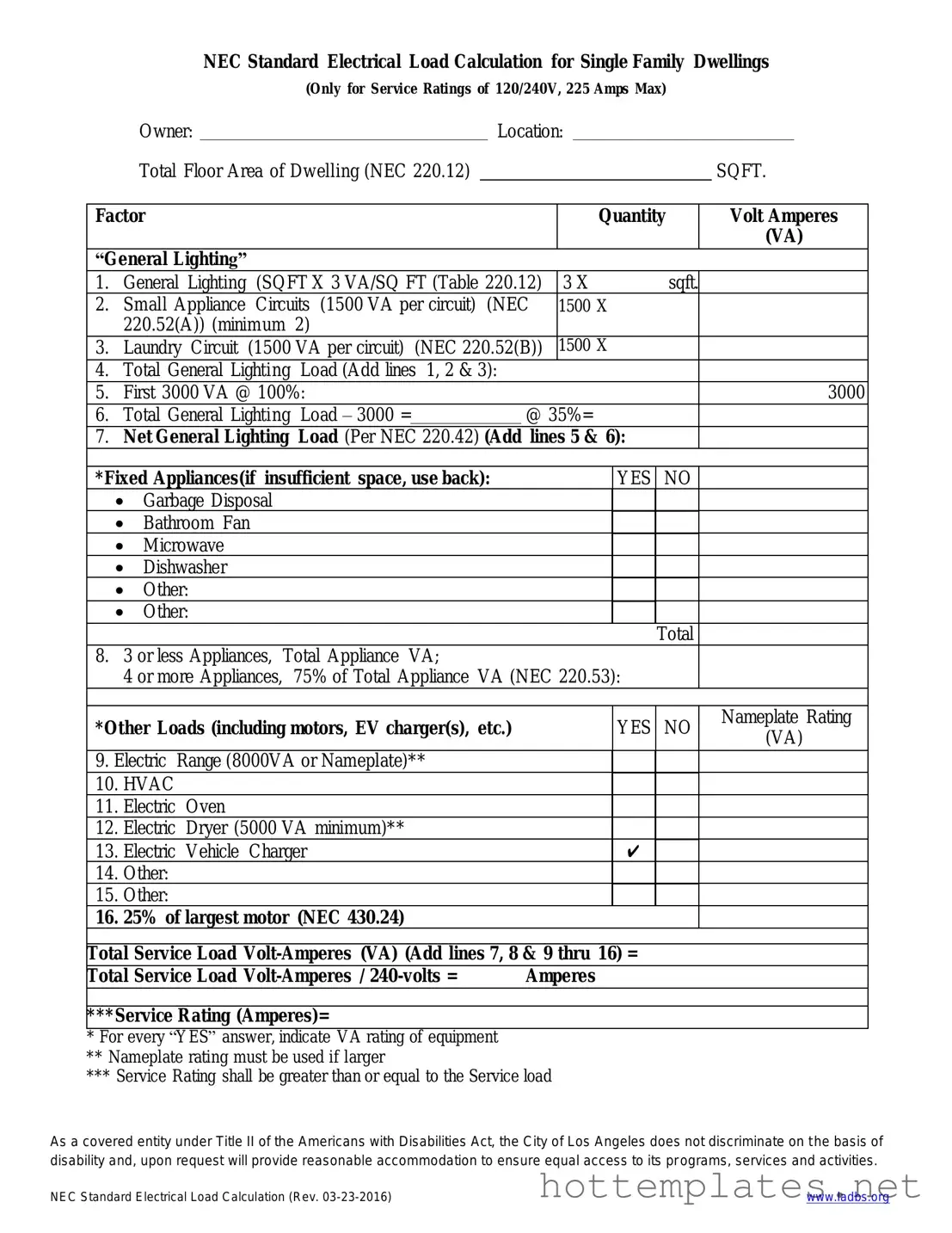

The LADBS NEC Standard Electrical Load Calculation form is a document designed to help individuals and professionals calculate the electrical load for a building or property according to the standards set by the National Electrical Code (NEC). This form facilitates the process of determining the electrical capacity required to safely power the electrical systems and appliances in a building, ensuring compliance with the Los Angeles Department of Building and Safety (LADBS) regulations.

Who needs to use the LADBS NEC Standard Electrical Load Calculation form?

This form is primarily used by electricians, contractors, architects, and engineers involved in the design, construction, or renovation of buildings within the jurisdiction of Los Angeles. It is also valuable for homeowners undertaking significant remodeling projects that could affect the electrical system of their home. Proper use of this form ensures that the electrical system is adequately sized to meet current and future needs safely.

How do I fill out the LADBS NEC Standard Electrical Load Calculation form?

Filling out the form involves several steps, including listing all electrical appliances and systems in the building, their respective power requirements, and calculating total loads using specific guidelines and calculations provided by the NEC. It is important to accurately describe each component of the building's electrical system, including lighting, HVAC, appliances, and any specialty equipment. The form may also require details about the property's electrical service and any existing electrical infrastructure.

Where can I find the LADBS NEC Standard Electrical Load Calculation form?

The form is available on the Los Angeles Department of Building and Safety's official website. It can usually be downloaded in PDF format, allowing users to fill it out by hand or electronically. If you're unable to find the form on the website, contacting LADBS directly via phone or email is recommended for assistance.

Is there a fee to submit the LADBS NEC Standard Electrical Load Calculation form?

Submitting this form as part of a building permit application may incur fees, depending on the scope of the project and the specific requirements of the LADBS. It's advisable to check the current fee schedule on the LADBS website or consult directly with department staff for accurate and up-to-date information regarding your specific project.

What happens after I submit the form?

Once the form is submitted, it will be reviewed by LADBS staff as part of the permit approval process. The review process ensures that the electrical design meets all safety standards and regulations. You may be contacted for additional information or clarification. Approval of the form is a critical step in obtaining the necessary permits for construction or renovation. To avoid delays, ensure that the form is filled out accurately and completely before submission.

Filling out the LADBS NEC Standard Electrical Load Calculation form is a task that often leads to errors if not done with careful attention to detail and a solid understanding of electrical systems. A common mistake is neglecting to accurately list and calculate all potential loads. People frequently overlook occasional uses like holiday lighting or rarely used equipment which can lead to an underestimation of the total demand. This misstep can result in inadequate electrical service, posing a risk to both safety and functionality.

Another frequent error involves misunderstanding the diversity factors and how they apply to different parts of the electrical system. Not all equipment runs at full capacity all the time, and the NEC allows for this variability through diversity factors. However, individuals often apply these factors incorrectly or not at all, leading to either overestimation or underestimation of the actual electrical load. This can cause oversized or undersized electrical systems, both of which have their drawbacks in terms of efficiency and cost.

Incorrectly classifying appliances and equipment is yet another mistake. The NEC differentiates between continuous and non-continuous loads, with continuous loads being those that operate for three hours or more at a time. Failing to properly classify these can lead to incorrect calculations since continuous loads require a 125% factor in the calculation. Misclassification can drastically alter the final load calculation, potentially leading to system overloads or unnecessary system upgrades.

Overlooking the importance of future expansions or modifications to the electrical system is also a common oversight. When filling out the form, considering the possibility of future load increases due to renovations, expansions, or the addition of new electrical devices is crucial. Failure to account for future needs can mean the initially calculated service will be insufficient sooner than expected, requiring costly upgrades or adjustments down the line.

Lastly, many individuals complete the form without consulting the most recent NEC code or without proper knowledge of it. Since electrical codes are updated regularly to reflect new knowledge and technology, using an outdated code or misunderstanding the current requirements can lead to significant errors in the load calculation. This not only risks the safety and efficiency of the electrical system but can also lead to code violations, resulting in fines or mandatory corrections.

When undertaking a project that requires electrical work, particularly in areas governed by the Los Angeles Department of Building and Safety (LADBS), the NEC Standard Electrical Load Calculation form is an essential tool. This document helps ensure that all electrical installations comply with the National Electrical Code (NEC) requirements, accounting for a safe and efficient energy supply to a structure. However, this form does not stand alone in the process. Various other documents are usually needed to complement the LADBS NEC Standard Electrical Load Calculation form, facilitating a thorough and compliant approach to project planning and execution.

• Building Permit Application: Before any construction or electrical work begins, a Building Permit Application is typically required. This document initiates the review process by local authorities, ensuring the planned work meets all zoning and building codes. It often accompanies the electrical load calculation form to provide a comprehensive overview of the proposed project.
• Electrical Plan: An Electrical Plan outlines the layout of all electrical wiring, fixtures, and systems within a project. It serves as a detailed guide for installation and is crucial for identifying the electrical loads calculated in the LADBS NEC Standard Electrical Load Calculation form. This plan helps ensure that every component is properly integrated and meets safety standards.
• Energy Conservation Compliance Documents: In areas with energy conservation codes, such as California's Title 24, specific forms must be completed to demonstrate compliance with energy efficiency requirements. These documents detail how the electrical design, including lighting and power systems, conforms to prescribed energy standards.
• Owner-Builder Verification Form: If a property owner chooses to act as their own general contractor, an Owner-Builder Verification Form may be needed. This form verifies the owner's legal right to undertake construction work on their property and their understanding of the responsibilities associated with the role, especially regarding compliance with local building and electrical codes.
• Inspection Request Form: After the electrical work is completed, an Inspection Request Form is necessary to schedule a visit from a local inspector. This step is vital to ensure all installations are up to code based on the NEC and the specifics outlined in the electrical load calculation form. It's the final step in obtaining approval for the work completed.

To successfully navigate the intricacies of electrical installations and ensure compliance with local codes, the LADBS NEC Standard Electrical Load Calculation form and its associated documents are indispensable. Each plays a unique role in the process, from the initial application to the final inspection. Together, they provide a clear and compliant path through the complexities of electrical planning and execution. Understanding the purpose and requirements of these forms is critical for any project aiming to meet local regulations and ensure the safety and efficiency of its electrical systems.

Navigating the landscape of official documentation can sometimes feel like a treasure hunt—each form holding the key to the next step. When it comes to the LADBS (Los Angeles Department of Building and Safety) NEC (National Electrical Code) Standard Electrical Load Calculation form, it's a critical piece of the puzzle in ensuring that electrical systems are designed with safety and efficiency in mind. This particular form might seem unique in its application, but believe it or not, it shares similarities with a range of other documents crucial to various official processes. Here's an outline of six documents that have a kindred spirit with the LADBS NEC form:

• Building Permit Application Forms: Much like the LADBS NEC form, these applications are the first step in obtaining authorization for construction or remodeling projects. Both forms require detailed information about the project to ensure compliance with local codes and standards.
• Fire Safety Plan Submittals: These are similar to the NEC form as they ensure a building's design includes necessary measures to prevent, detect, and respond to fires. Both types of documents focus on safety standards, albeit from different angles—electrical and fire prevention.
• Energy Compliance Documents: These documents share the goal of ensuring that buildings adhere to energy efficiency standards. Like the electrical load calculation, energy compliance documents require detailed calculations to verify that the building's design meets state or local energy codes.
• Structural Calculation Sheets: Structural calculations ensure a building's physical integrity, just as electrical load calculations ensure the safety and efficiency of a building's electrical system. Both types of calculations are vital for the safety and legality of construction projects.
• Plumbing System Design Documents: Similar to the electrical load form, plumbing design documents detail the layout and specifications of a building’s plumbing system. Both are essential for ensuring that systems within a building operate efficiently and meet regulatory requirements.
• Property Survey Reports: While focusing more on the land a building sits on, property survey reports share the characteristic of being foundational to the planning of any construction or renovation project. Both survey reports and the electrical load form provide crucial details that affect how a project proceeds in compliance with local regulations.

These documents collectively contribute to the complex, multifaceted process of building and renovation, ensuring projects not only come to fruition but do so in a manner that's safe, efficient, and compliant with all necessary regulations. The next time you come across the LADBS NEC Standard Electrical Load Calculation form, remember it's part of a bigger picture—a puzzle piece in the world of construction and building safety.

Filling out the LADBS NEC Standard Electrical Load Calculation form correctly is crucial for compliance and ensuring the safety of electrical installations. Here are some dos and don'ts to keep in mind when tackling this task.

1. Read the instructions carefully before starting. Understanding every question fully can minimize mistakes and improve accuracy.

2. Gather all required information beforehand, including details about the electrical devices and appliances in the property. This preparation simplifies the process.

3. Use a calculator to ensure all numerical values are accurate. Even minor errors in calculations can lead to significant issues down the line.

4. Consult the latest National Electrical Code (NEC) handbook as a reference. The NEC contains standards to help determine the correct electrical load requirements.

5. Double-check your work before submission. Reviewing your calculations can catch errors you might have overlooked on the first pass.

• Guess at values or make assumptions without evidence. Estimations can lead to under or over-calculating electrical loads, both of which are problematic.

• Leave sections incomplete. If a section does not apply, mark it as N/A (not applicable) instead of leaving it blank. Omissions can cause processing delays.

• Use outdated forms or instructions. The LADBS regularly updates its documents to reflect changes in codes and standards, so always use the most current version.

• It's only for experts: A common misconception is that the LADBS NEC Standard Electrical Load Calculation form is intended solely for individuals with extensive electrical engineering experience. While the form does require a certain level of technical knowledge, its primary aim is to guide all users through the process of calculating electrical loads in a standardized manner.

• It's too complex to understand: Although the terminology and calculations can seem daunting at first glance, the purpose of this form is to simplify the process of determining electrical needs. Many resources are available to help users navigate the form, including guidelines, explanatory notes, and support from the Department of Building and Safety.

• It's only applicable in Los Angeles: While designed by the Los Angeles Department of Building and Safety (LADBS), the NEC Standard Electrical Load Calculation form is based on the National Electrical Code (NEC), making it a valuable tool for understanding electrical load calculations beyond Los Angeles, in any jurisdiction that follows the NEC.

• It replaces the need for an electrician: Utilizing the form does not eliminate the need for a qualified electrician. Its use is to ensure that electrical systems designs meet the minimum requirements set forth by the NEC. A licensed electrician is crucial for implementing these designs and ensuring that all work complies with local codes and standards.

• Only for new constructions: Another misconception is that the form applies exclusively to new construction projects. In reality, it is equally important for renovations, additions, or any project that involves electrical system modifications, as it helps in recalculating loads based on updated usage needs.

• It guarantees approval by LADBS: While following the NEC Standard Electrical Load Calculation form can significantly aid in ensuring compliance with the NEC, it does not automatically guarantee approval by LADBS. The overall approval process includes various factors, including adherence to local amendments and other building codes.

• One-time use only: Some users may think that once filled, the form's purpose is served. However, it should be considered a living document throughout a project's design phase, especially as modifications occur. Revisiting and revising the electrical load calculations can be crucial as project details evolve.

• Only necessary for large projects: Regardless of the project size, from small residential remodels to large commercial developments, an accurate understanding of electrical loads is essential. Small projects also benefit from the structured approach to identifying and calculating electrical needs provided by the form.

• Use of the form is optional: While not every jurisdiction mandates the use of this specific form, adhering to the NEC standards is a requirement across many areas. Using the LADBS NEC Standard Electrical Load Calculation form helps ensure that projects meet these standards, thereby facilitating a smoother approval process.

When dealing with the LADBS NEC Standard Electrical Load Calculation form, accurate completion and understanding how it's used is crucial. Here are key takeaways to keep in mind:

1. Understand the Purpose: The form helps in calculating the standard electrical load for residential and commercial buildings as per the Los Angeles Department of Building and Safety (LADBS) and National Electrical Code (NEC) guidelines. It ensures electrical systems are suitable for the building's requirements.

2. Accuracy is Key: Carefully input all required information. Errors or inaccuracies can lead to delays or fail compliance with the LADBS and NEC, requiring revisions or re-submissions.

3. Complete All Sections: The form might have multiple sections covering different aspects of your electrical system. Each section must be completed to provide a comprehensive overview of your electrical load needs.

4. Review NEC Guidelines: Familiarize yourself with the NEC guidelines relevant to your project before you begin the calculation. This prepares you to better understand the requirements and how they apply to your calculations.

5. Use Approved Calculation Methods: The NEC provides specific methods for calculating loads. Ensure you use these approved methods to determine your figures for accuracy and compliance.

6. Submit Supporting Documents: You may need to submit additional documentation along with the form. This could include detailed plans of the electrical system, among others. Check the LADBS requirements for your specific project.

7. Know the Deadlines: Adhering to submission deadlines is important to keep your project on schedule. Late submissions can lead to project delays.

8. Seek Professional Help if Needed: If you're unsure about any part of the form or the calculation process, consulting with a professional electrician or electrical engineer who is familiar with the NEC and LADBS regulations can prevent costly mistakes.

By keeping these key points in mind, you can navigate the LADBS NEC Standard Electrical Load Calculation form with greater confidence, contributing to a smoother approval process for your building project.
